Stainless Steel Mesh Curtains for Decorative Spaces

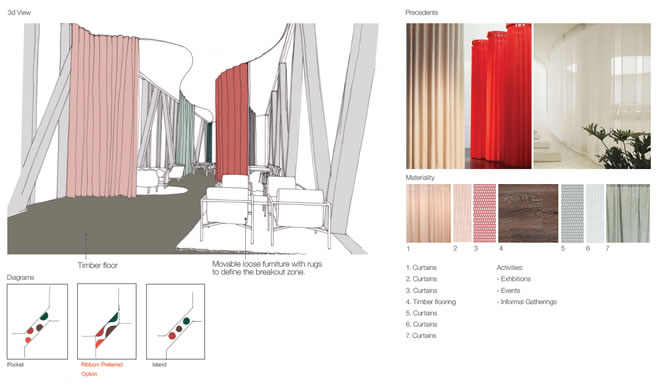

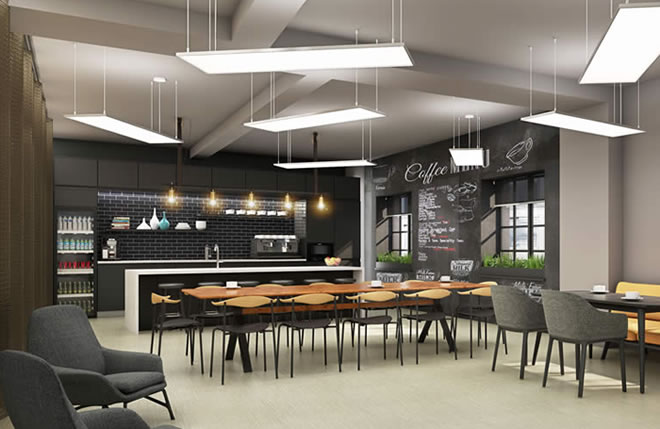

Hanging stainless curtains are mainly used for fixing of interior breakout zone, door ways and multifunctional common spaces. Mounting type is hanging from the ceiling tracks, fixed in position or sliding.

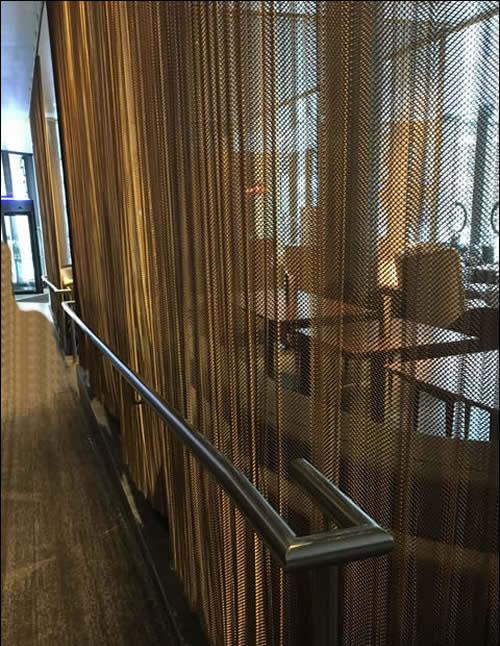

S.Steel Chain Curtains, Bronze Finish, mounted on Brushed S.Steel Sliding Tracks

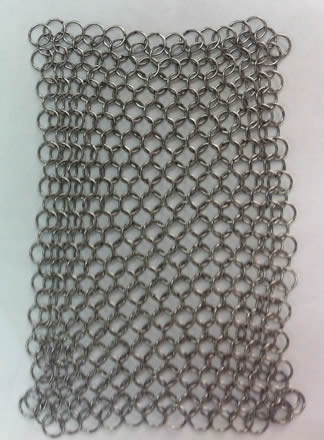

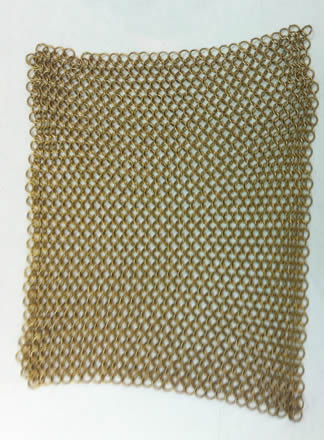

Stainless Steel Coil Fabrics with Aged Bronze Color	8mm Diameter Metal Rings Chain Model Fabric, Gunmetal Color

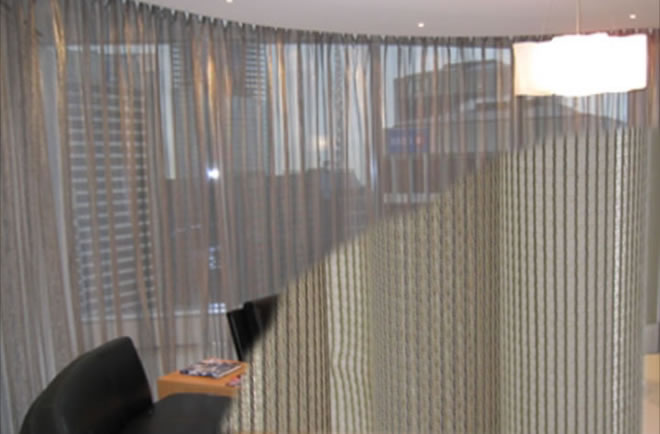

304 mesh curtain panels used in apartments and hotel lofts, to form a multifunctional common space in an apartment bloc

Technical Information:

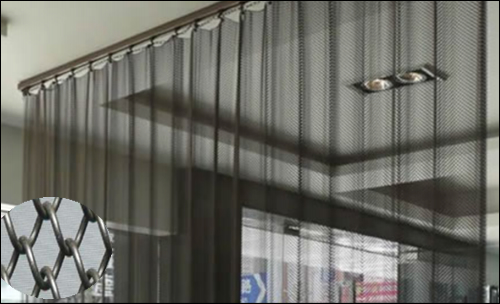

Mesh Type: Woven chain curtain, of metal rings interlooped
Color: in Satin Bronze
Wire Diameter: 1.2mm
Aperture: 4mm
Fabric thickness: 3.6mm
Material: Stainless steel 304/316/316L/ T310
Finishes: Painted into bronze and other colors.
Installation: Hanging system mounted on s. steel sliding rail.
Application: Curtain System for Interior Design Project

Sample to be produced for approval prior to full production.

SS curtains are favorite with Architect interior designers for residential project with big or small communal spaces. The hanging curtain system has a flexible way of dividing the space into different areas depending on the occasion of usage.

We offer:

- Curtain fabric (pieces, material, weight, durability, colour range)

- Curtain track / sliding channels (similar color or treatment to the fabrics)

- Fixings

- Maintenance

- Mount & demount tools

- Automatic control or manual

- Electric services



Stainless Steel Coil Mesh Shower Curtains
1/4" opening:
10'-6" wide x 6'-10" high
3'-2" wide x 6'-10" high
alternative in aluminum with bright natural finish.



Stainless Steel Wire Mesh Window Curtains Retractable
Metal Wire Mesh Curtains (retractable);
In general, mesh/perforated curtains are retractable, that is, the curtains can be rolled up in ceiling.
For ss mesh reference, go to stainless steel wire mesh website



Project: Stainless Steel Mesh Curtains for Laboratory
The room dimensions 13' 8" x 15' 0"
8 ft. high metal mesh curtain to cover two sides of lab. A weave size of 6-10 mm will provide adequate wave length protection. Stainless steel materials, the curtain in two pieces, one piece per side.



Metal Mesh Drapery ( Stainless) for an industrial use
Metal mesh drapes, approximately 12’-6” wide by 15’-0” tall, each with roller track:
Stainless steel (aperture 6.8mm) and the magnesium alloy (aperture 6.8 mm)
four (4) roller tracks

Stainless Steel Decorative Curtains
Size: 12' curtains in a stainless steel finish.

Stainless Steel Ring Mesh for Decoration projects
Architectural Mesh
Metal Mesh Partitions
Metal Mesh Window Curtains

Download PDF for Detailed Information:

Stainless Steel Curtain Spec PDF

Drawing Stainless Steel Curtain PDF

Mesh Details PDF



New Project:

Mesh Curtain used for Interior (Lobby, Work space, etc.) Decoration

Curtain fabrics have three kinds of materials: Stainless steel T310, 304 or 316

Curtain fabric: Woven SS310 Stainless Steel mesh, 37% open
Weaving: Spiral chain weave
Colour: Natural stainless steel
Fabric width: 1220 mm
Weight Per Meter: 0.2 Kg/m2
Curtain Fullness: 1 to 2.5
Finished length to be 5mm from finished floor level.
Curtains easy for removal and cleaning.

Curtain fabric:
Material: SS304, SS316
Wire diameter: 1.2mm
Aperture: 6.8mm
Spiral diameter thickness: 6.5mm
Weight: 5.8 kg/m2



New Applications:
Hanging Stainless Steel Mesh Curtain used as radiant barrier.
To satisfy the radiant blocking function, the curtains shall have a minimal open area.
Common dimensions: 3’wide x 6’tall x 12ea curtains.
Custom size available.

Please do not hesitate to contact should you require further details.
