Decorative Wire Mesh Made of Stainless Steel and Other Metal Materials, for Facade and Shading Grille

Stainless Steel Decorative Wire Mesh is woven in Stainless Steel for mainly architectural decoration.

Stainless steel wire mesh as architectural mesh for decoration and design combines functionality with high aesthetic features. A combination opens new perspectives to creative design and allow for fascinating architectural solutions. Due to their multiple functional and aesthetic qualities, the meshes are suitable for various applications in architecture and interior design.

Material:

SS 304, SS 316, SS 304L, SS 316L



Application:

Protection of the building, blocking the sunlight, beautify the building.

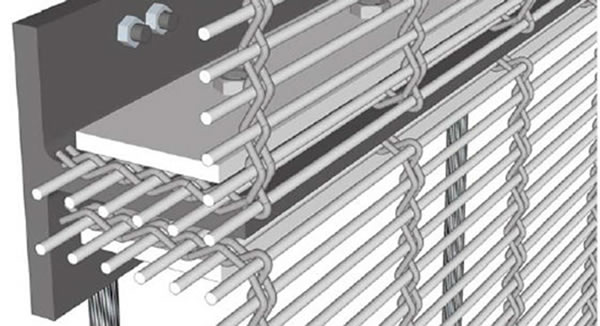

Installation

Installing parts and fixing parts such as Suport and Connecting nuts are needed.

Specifications and Type Illustrations:

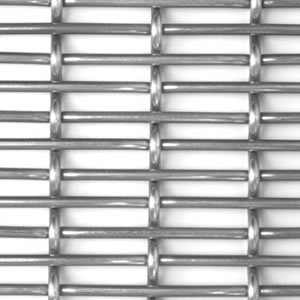

Decorative Wire Mesh A

Stainless Steel Rope Diameter: 3mmX4
Bar diameter: 3mm
Rope Pitch: 100mm
Bar Pitch: 20mm

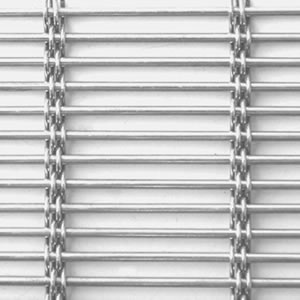

Decorative Wire Mesh B

Wire Diameter: 2mmX3
Bar Diameter: 3mm
Rope Pitch: 20mm
Bar Diameter: 20mm

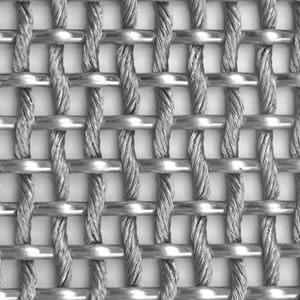

Decorative Wire Mesh C

Rope Diameter: 5mm
Bar Diameter: 5mm (Recrimped)
Rope Pitch: 10mm
Bar Pitch: 10mm

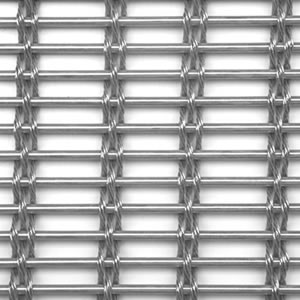

Decorative Wire Mesh D

Weft Bar Diameter: 3mm
Warp Bar Diameter: 3mm
Weft Bar Pitch: 10mm
Warp Bar Pitch: 50mm

Decorative Wire Mesh E

Weft Bar Diameter: 3mm
Warp Bar Diameter: 1.5mm
Weft Bar Pitch: 10mm
Warp Bar Pitch: 50mm

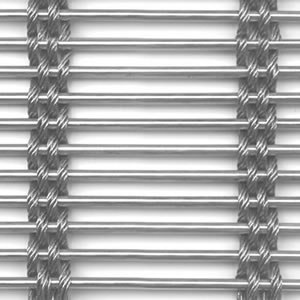

Decorative Wire Mesh F

Wire Rope Diameter: 5mm
Bar Diameter: 7mm
Rope pitch: 30mm
Bar Pitch: 70mm

Uses: Our product can be used as facade construction, protective guardrails, parking garage facades, sound absorption and sun protection. Because of the weaving procedure, extra long panels can be taut from grand floor to the roof. Unusual facade designs can be realized with Lanatal decorative mesh grilles.

We can also supply brass, copper and silver decorative mesh for customers.
