Expanded Metal Mesh for Decorative Sheets Material

Expanded Metal Mesh is the most practical and economical way to assure strength, safety, and anon-skid surface. It is suitable for fencing, decorating the walls and public buildings.

Material: aluminum, carbon steel, stainless steel, nickel, titanium, brass and other metal materials.

Process: punching and expanding.

Expanded Metal Sheet Technical Information:

Hole shape: rhombic shape, hexagonal shape, flattened, diamond, square hole, scale hole

Long way of mesh(mm):12.5-200

Short way of mesh (mm): 5-80

Thickness(mm): 0.5-8

Length(mm): 600-4000

width (mm): 600-2000

Variety of expanded metal: small, medium and heavy expanded metal mesh. Expanded aluminum mesh, expanded platinum filtration mesh, expanded brass mesh, expanded copper mesh, expanded stainless steel mesh, expanded nickel mesh. Opening in the shape of diamond, hexagonal or special shape.

Applications:
With excellent metal stretching technology, our expanded metal meshes are very firm and durable. They are very artistic and widely applied in the following fields:

1> Mainly used for shielding, decorating, battery netting, mechanical equipment protection, handicrafts manufacturing, and window screen replacements, etc.

2> Expanded Metal Mesh is used for oil tanker truck mat netting, heavy-duty machinery and the working platforms, escalator or passages of boiler, oil mine, locomotives, ships, etc.

3> Expanded Metal Mesh can be also used as fencing for road, bridges, etc.

Advantage:

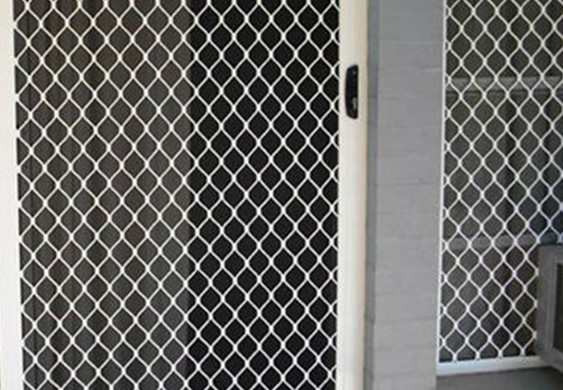

1. It can be used as security window
2. We can provide aluminium expanded grille with good quality and competitive price
3. We can provide different sizes and surface treatment according to customers' requirement

Surface treatment:
PVC coated, Galvanized, Epoxy resin,anodic oxidation, antirust paint etc.

Packing:
In panels or rolls, as customers' requirement.

Sizes of Expanded Metal Mesh:

Sheet thickness(mm)	Opening in width(mm)	Opening in length(mm)	strand	Roll width(m)	Roll length(m)	Weight(kg/m2)
0.5	2.5	4.5	0.5	0.5	1	1.8
0.5	10	25	0.5	0.6	2	0.73
0.6	10	25	1	0.6	2	1
0.8	10	25	1	0.6	2	1.25
1	10	25	1.1	0.6	2	1.77
1	15	40	1.5	2	4	1.85
1.2	10	25	1.1	2	4	2.21
1.2	15	40	1.5	2	4	2.3
1.5	15	40	1.5	1.8	4	2.77
1.5	23	60	2.6	2	3.6	2.77
2	18	50	2.1	2	4	3.69
2	22	60	2.6	2	4	3.69
3	40	80	3.8	2	4	5.00
4	50	100	4	2	2	11.15
4.5	50	100	5	2	2.7	11.15
5	50	100	5	1.4	2.6	12.39
6	50	100	6	2	2.5	17.35
8	50	100	8	2	2.1	28.26



We also supply expanded metal grating. It is ideal for use on plant runways, working platforms, and catwalks, as it is easily cut into irregular shapes and can be installed quickly by welding or bolting.
